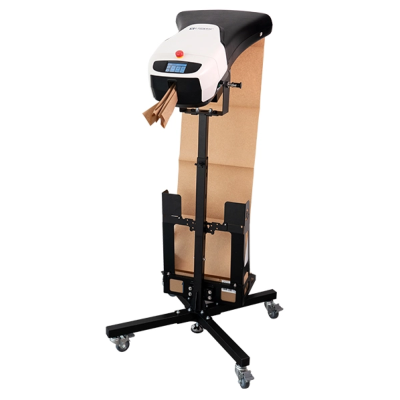

LockedWave® Paper Voidfill Machine

LW-F1 Kraft Paper Void Fill System – Industrial High-Speed Paper Converter for Sustainable Packaging

Engineered for speed, efficiency, and continuous performance, the LW-F1 Kraft Paper Void Fill System is the ultimate paper-based solution for high-volume packaging lines. Built for demanding fulfilment environments, it produces dense crimped paper pieces for void fill and light load blocking—delivering reliable, eco-conscious protection while reducing operating costs.

Key Features & Benefits

• High-Speed Output: Delivers unmatched throughput with feed speeds of up to 200 m/min and cutting speeds up to 50 cuts per minute—ideal for fast-moving operations.
• Low Jam Rate & Long Blade Life: Equipped with a durable, self-clearing blade that handles 50–90 gsm kraft paper with less than 0.5% jam rate, ensuring smooth, reliable performance.
• Top-Loading Paper Feed: Accepts fan-fold kraft paper rolls up to 380 mm wide and allows fast, tool-free changeovers—keeping downtime to a minimum.
• Touchscreen Operation: Simple-to-use HMI offers full control of length settings, operating modes, and system status, supported by jam and paper-out alerts.
• Compact, Industrial Design: Lightweight 19 kg converter head fits into tight workstations or conveyor lines; available with optional stand for flexible setup.
• Safe & Energy Efficient: Runs on a 400 W motor using 100–240 V AC and features auto-stop protection, standby mode, and intelligent fault alerts.
• Eco-Friendly Performance: Converts recyclable kraft paper into sturdy, renewable void fill—minimising plastic use and reducing packaging waste.

Specifications Snapshot

• Feed Speed: Up to 200 m/min
• Cutting Speed: 50 cuts/min
• Paper Type: Fan-fold kraft paper, 50–70 gsm (LW-P50 Plus, LW-P70 ECO, LW-P70 Plus)
• Paper Width: 380 mm
• Power Supply: 100–240 V AC, 400 W
• Machine Dimensions: 665 × 685 × 1450–1850 mm
• Weight: 19 kg (converter head only)

Why You’ll Love It

• Maximum Throughput – Built for high-volume packaging lines with market-leading feed speeds and quick cycle times.
• Sustainable & Cost-Effective – Replace plastic fillers with recyclable paper, cut packaging waste, and reduce overall costs.
• Smart & Reliable – Touchscreen controls, quick maintenance access, and low jam rates make this a dependable, low-touch system.

Perfect For

Industrial warehouses, distribution centres, 3PLs, e-commerce fulfilment, and packaging operations requiring rapid, eco-friendly void fill at scale.
