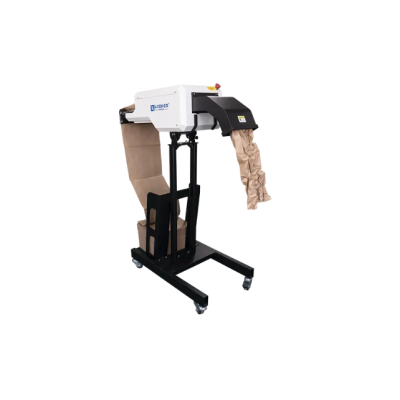

LW-C2 Paper Pad Machine

LP-C2 Wide Paper Cushion Pad System – Industrial-Grade, Wide-Format Paper Converter for Heavy-Duty Protection

The LP-C2 Wide Paper Cushion Pad System is engineered for high-performance, sustainable packaging. Designed to convert wide-format fan-fold kraft paper into thick, protective cushion pads, it’s ideal for wrapping, blocking, and bracing large or heavy products during transit. With high-speed output and strong pad construction, the LP-C2 is perfect for demanding industrial applications.

Key Features & Benefits

• Wide Pad Output: Produces cushion pads up to 762 mm (30") wide using pre-folded fan-fold kraft paper—ideal for packaging large, bulky items.
• High-Speed Performance: Operates at up to 1 metre per second with 80 cuts per minute, keeping up with fast-paced packing lines.
• Double-Puncture Locking Design: Creates strong, reliable pads with reinforced folding for superior protection.
• Low Jam Rate & Minimal Waste: Features an intelligent one-touch jam-clear function and minimal crimp loss to maximise paper efficiency.
• Quick & Easy Paper Loading: Top-loading design enables fast, tool-free paper changes, reducing downtime and improving productivity.
• Compact, Industrial Build: With a footprint of just 1100 × 550 × 1515 mm and a converter weight of 52 kg, it integrates easily into most packing areas.
• Universal Power Supply: Operates on 100–240 V AC (50/60 Hz), making it adaptable to global warehouse setups.
• Eco-Friendly Output: Uses recyclable kraft paper to produce high-volume, sustainable void fill—eliminating the need for foam or plastic alternatives.

Specifications Snapshot

• Pad Width: Up to 762 mm (using pre-folded 381 mm paper)
• Feed Speed: Up to 1 m/s (approx. 60 m/min)
• Cutting Speed: 80 cuts per minute
• Paper Type: Virgin or recycled kraft, 50–70 gsm, (LW-MPRV70, LW-MPV70)
• Machine Dimensions: 1100 × 550 × 1515 mm
• Machine Weight: 52 kg (optional stand: 34 kg)
• Power Supply: 100–240 V AC, 50/60 Hz

Why You’ll Love It

• Wider Format Coverage – Provides broader protection, reducing the number of pads needed per shipment.
• Built for Industrial Demands – High feed speed, low maintenance, and rugged construction make it ideal for heavy-use operations.
• Sustainable & Cost-Effective – Reduces packaging waste and plastic use with recyclable kraft paper pads.

Perfect For

Manufacturers, distributors, and fulfilment centres handling large-format, heavy, or fragile products—such as furniture, industrial parts, automotive components, and oversized goods.
